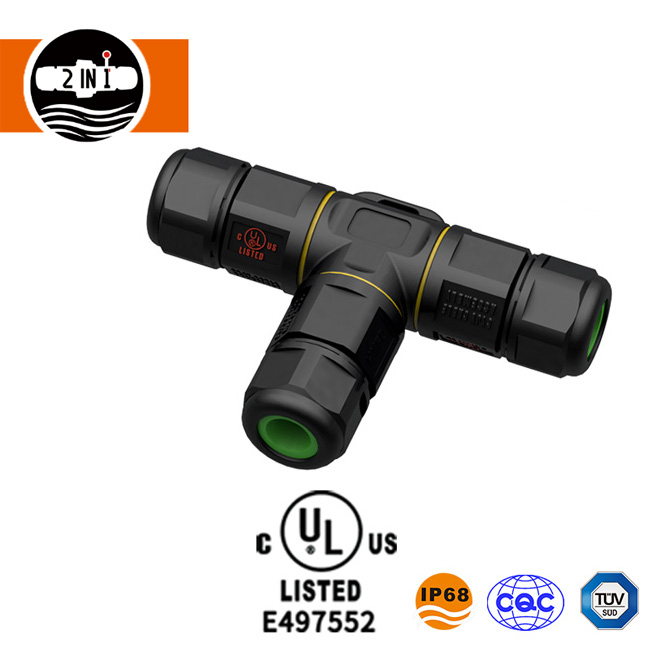

T Shape Screw UL Waterproof Connector
Product Description
Product Detail
HuaYi-FaDa Technology is one of the professional T Shape Screw UL Waterproof Connector manufacturers and suppliers in China. Our T shape screw UL waterproof connector has passed UL, TUV, RoHS certificate. It is with IP68 waterproof level, and the main body is made of nylon material to greatly improve the waterproof connector’s durability and safety. This T shape waterproof connector is with screw termination to ensure easy connection and field mountable ability.
Parameter of T Shape Screw UL Waterproof Connector
|
Specifications: |
|
|
Product name |
T Shape Screw UL Waterproof Connector |
|
Item number |
PGT2 |
|
Connection way |
Screw terminal for quick connection |
|
Core number |
2 pin, 3 pin, 4 pin available |
|
Color |
Black |
|
Waterproof level |
IP68 |
|
Cable specification |
14AWG~18AWG |
|
Cable diameter range |
6.0mm~12.0mm |
|
Rated current (A) |
6A~10A |
|
Operating voltage (AC.V.rms) |
500V |
|
Withstand voltage (AC.V) |
1500V at 1min |
|
Contact resistance |
<5mΩ |
|
Insulation resistance |
>500MΩ |
|
Durability |
≥3000 mating and unmating cycles |
|
Temperature rating |
-40°C~105°C |
|
Flame-resistance |
UL94-V0 |
|
Material: |
|
|
Shell and insulated parts |
High performance engineering plastics |
|
Contact pin |
Copper alloy with nickle-plating |
|
Seal |
Silicon |
Feature And Application of T Shape Screw UL Waterproof Connector
1) Internal screw terminal connection, strong connection.
2) It adopts rubber gasket and sealing tube, nylon material tube and nut are tightly matched, which effectively protects against dust and water. 3) Lightweight, safe and easy.
Product Details of T Shape Screw UL Waterproof Connector
Product Qualification of T Shape Screw UL Waterproof Connector
This T shape screw UL waterproof connector has passed UL, TUV, RoHS certificate. It is with IP68 waterproof level.
Key Materials
|
Component |
Material |
Properties |
|
Shell & Insulated Parts |
High Performance Engineering Plastics (Nylon PA66) |
Flame-retardant (UL94-V0), durable, lightweight |
|
Contact Pins |
Copper Alloy with Nickel-Plating |
Low contact resistance (<5mΩ), corrosion-resistant |
|
Seals |
Silicone Rubber |
Wide temperature range, excellent sealing performance |
Applications
The T Shape Screw UL Waterproof Connector is widely used across multiple industries:
Outdoor Lighting Systems: Street lights, garden lights, LED display screens, and light boxes
Industrial Automation: Temperature transmitters, hydraulic machines, pressure sensors, and automated equipment
New Energy & Solar Photovoltaic: Solar panels, inverters, and renewable energy systems
5G Communication Infrastructure: Base stations and communication equipment
Marine & Outdoor Equipment: Ships, electric vehicles, and outdoor power systems
Architectural Lighting: Building facades, landscape lighting, and decorative illumination projects
Quality Certifications
As a professional T Shape Screw UL Waterproof Connector manufacturer, HuaYi-FaDa Technology ensures all products undergo rigorous quality testing:
UL Certification - Safety standard compliance
TUV Certification - International product safety
RoHS Compliance - Environmental protection standard
IP68 Waterproof Rating - Highest dust and water protection
ISO 9001 - Quality management system
Our products are 100% tested (not just batch tested) to guarantee consistent quality and performance. Every T shape screw UL waterproof connector that leaves our factory has undergone comprehensive electrical and mechanical testing to ensure it meets our exacting standards.
Manufacturing Capabilities
HuaYi-FaDa Technology brings extensive manufacturing experience to every T Shape Screw UL Waterproof Connector. Our comprehensive production facilities include:
Independent mold processing workshop
Injection molding workshop
Cable extrusion production line
Hardware processing workshop
Facility Highlights:
Factory area: 8,000+ square meters
Employees: Approximately 200
Production equipment: Vertical/Horizontal Injection Molding Machines, Stripping Machines, Terminal Machines, Automatic Cutting Machines, Wire-Drawing Machines, CNC Milling Machines, Grinding Machines, and Spark Machines
OEM/ODM Customization Services
HuaYi-FaDa Technology offers comprehensive OEM and ODM services for T Shape Screw UL Waterproof Connector customization:
Custom cable length and wire gauge
Shell color customization
Customized packaging and branding
Special pin configurations
Tailored technical specifications
Our experienced R&D team transforms your specific requirements into reliable connection solutions. We have successfully delivered customized T shape screw UL waterproof connector solutions for clients across various industries, ensuring each product meets their unique application demands.
Shipping & Service
|
Service Type |
Details |
|
Sample Orders |
DHL, UPS, FedEx, TNT (2-7 Days) |
|
Batch Orders |
Sea Freight (2-3 Weeks) |
|
Free Samples |
3 Pieces Per Part Number |
|
Lead Time |
2-3 Weeks After Order Confirmation |
|
Quality Guarantee |
3 Years Warranty |
Why Choose HuaYi-FaDa Technology?
Professional Manufacturer with Proven Experience
With extensive specialized experience in waterproof connector manufacturing, we understand the demands of various industries and deliver reliable connection solutions. Our long-standing presence in the industry reflects our commitment to quality and customer satisfaction.
Trusted by Industry Leaders
Our T Shape Screw UL Waterproof Connector and other products have been supplied to global industry leaders including Philips (Signify), OSRAM, and Amphenol. We have maintained successful partnerships with these prestigious companies for many years, demonstrating our ability to meet the highest quality standards consistently.
International Certifications
UL, TUV, CE, RoHS, CQC, IP68 certifications ensure our products meet the highest international safety and quality standards. These certifications provide our customers with confidence in the reliability and compliance of our T shape screw UL waterproof connector products.
Complete In-House Production
From mold processing to final assembly, we control every step of the manufacturing process, ensuring consistent quality and competitive pricing. Our vertically integrated operations allow us to maintain strict quality control throughout production and respond quickly to customer requirements.
Responsive Customer Service
We provide professional pre-sales technical support and comprehensive after-sales service to address any concerns promptly. Our team is committed to ensuring your satisfaction with every T shape screw UL waterproof connector purchase.
Service Process
|
Step |
Description |
|
Inquiry |
Customer submits product requirements and specifications |
|
Consultation |
Our technical team recommends suitable models and solutions |
|
Sampling |
Free samples provided for quality verification |
|
Order Confirmation |
Production details finalized and order placed |
|
Manufacturing |
Rigorous production under strict quality control |
|
Testing |
100% inspection before shipment |
|
Delivery |
Timely shipping via customer's preferred method |
|
After-Sales Support |
Continuous technical support and quality guarantee |
FAQ
1) Q: I am interested in your connectors, do you have a price list ?
A: We have no a price list of all the connectors. Because we have so many models and the price keeps changing because of the market demand. If you need the price of any our connectors, please send us your requirements, we will recommend suitable connectors and send you quotation accordingly.
2) Q : Can you make customized products and customized packing?
A: Yes. We have professional R&D team and customized experience for years. No matter how special request about connectors OR packing, just send us your technical request, we would make it real for you!
3) Q: Can you provide samples ? Are the samples free ?
A: Yes , we support 3pcs samples free one time for quality test before bulk order, but the shipping cost need to be paid.
4) Q: What's your payment term and payment way? Can I pay RMB ?
A: We support 100% payment before delivery by TT. Normally we charge in USD, if you would like to do in RMB,It is also welcome.
5) Q : What about your delivery time?
A: We are factory with bulk stock, usually shipment arranged within 3 working days after payment received. If no stock,we would check and keep your informed.
6) Q: Do you have a guarantee of your product quality?
A: Yes, 3 years guaranteed.
7) Q: Can I become an Agent / Dealer of HYFD Connectors?
A: Welcome! But please let me know your Country/Area first, We will check and talk more about this. If you want to do any connection related cooperation, do not hesitate to contact with us.
